How to Choose Among the Five Series of Hollow Rotary Platforms? Full Analysis of ZBT, ZCTK, ZCTZ, ZCH and ZBTR

Horizontal Comparison of Zhuochuang Five Series Hollow Rotary Platforms: A Table to Understand Selection

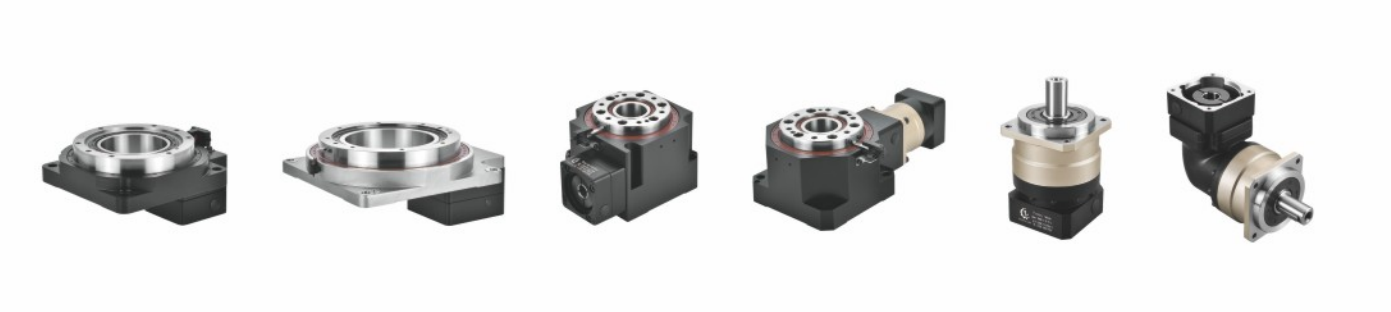

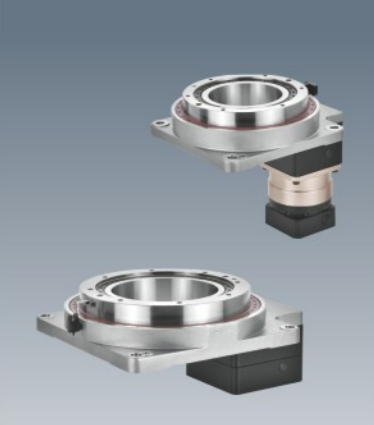

Series 1: ZBT Aluminum Shell Series - First Choice for Lightweight Precision Positioning

Zhuochuang ZBT aluminum shell series hollow rotary platforms focus on lightweight precision positioning. Made of high-quality aluminum alloy shell material, they have the core advantages of light weight, excellent heat dissipation and high cost performance compared with steel shell products, perfectly adapting to automated scenarios with strict requirements on equipment self-weight and heat dissipation.

This series has a wide coverage of hollow apertures, ranging from 60mm to 200mm, which can fully meet the wiring and pipe routing needs of most conventional equipment with strong versatility. In terms of accuracy performance, the ZBT series inherits Zhuochuang's precision transmission technology, with accurate positioning and stable operation, which is sufficient to meet the production needs of light-duty precision automated equipment.

Applicable Scenarios: 3C electronic automatic assembly equipment, product visual inspection equipment, light-duty assembly line positioning devices, small precision indexing equipment and other light-duty automated scenarios.

Core Advantages: Lightweight body design reduces overall equipment load; high heat dissipation efficiency supports long-term continuous operation; high cost performance adapts to conventional precision working conditions and controls equipment procurement costs.

Selection Notes: Limited by the physical characteristics of aluminum shell materials, the overall rigidity and bearing capacity of the product are limited. It is not suitable for heavy-load, partial-load and high-impact working conditions, and deformation is prone to occur in extreme heavy-load scenarios. Steel shell series products should be prioritized.

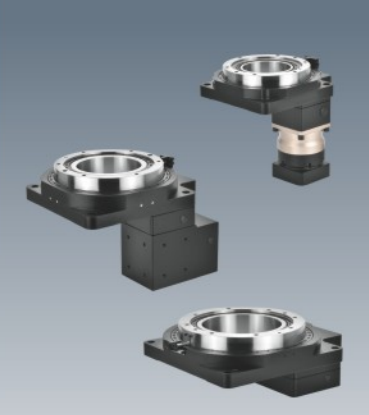

Series 2: ZCTK Steel Shell Series - Expert for Large-Aperture Wiring

The ZCTK steel shell series is a special hollow rotary platform developed by Zhuochuang for large-aperture wiring and high-rigidity working conditions. It adopts an integrated high-strength steel shell, with structural rigidity, vibration resistance and deformation resistance far exceeding those of aluminum shell series, adapting to various medium and heavy-load, high-precision and complex pipeline wiring scenarios.

The biggest core highlight of this series is the super-large hollow aperture design, with a maximum aperture of 150mm, far exceeding similar conventional products on the market. It can easily accommodate a large number of cables, air pipes, optical paths and vacuum pipelines penetrating at the same time, perfectly solving the industry pain points of crowded internal pipeline layout and messy wiring in precision equipment.

Applicable Scenarios: Laser processing equipment, semiconductor packaging and testing equipment, precision medical equipment, high-end automated equipment requiring dense wiring of multiple pipelines.

Core Advantages: Super-large hollow aperture meets dense wiring needs; high-rigidity steel shell structure ensures stable operation, low vibration and small accuracy loss; adaptable to medium and heavy-load working conditions with strong versatility.

Selection Notes: The steel shell material has higher density and heavier body weight than the aluminum shell series, so it needs to be carefully selected for lightweight scenarios with strict equipment self-weight restrictions.

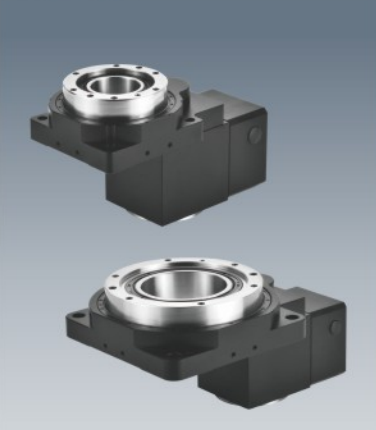

Series 3: ZCTZ Heavy-Duty Series - Reliable Choice for Side and Lifting Installation Scenarios

The ZCTZ heavy-duty series is a flagship product created by Zhuochuang for harsh working conditions such as heavy load, partial load, side mounting and lifting mounting. It is equipped with an exclusive built-in anti-overturning stable ring structure, which completely solves the problems of overturning, deformation and accuracy failure of conventional platforms under eccentric heavy-load and vertical installation conditions from the structural level, serving as an exclusive selection solution for heavy-duty automated equipment.

The product has industry-leading bearing capacity, with a maximum load of 1 ton. Combined with the optimized multi-stage gear transmission structure, it has large output torque and stable power transmission, and can withstand high-load, high-impact and eccentric stress working conditions for a long time, with a service life far exceeding that of ordinary heavy-duty platforms. The large aperture design above 90mm takes into account both heavy-load performance and wiring needs.

Applicable Scenarios: Automotive welding production lines, heavy workpiece precision detection equipment, large mechanical processing indexing devices, logistics heavy-duty rotary conveying equipment and other heavy-duty automated scenarios.

Core Advantages: Built-in anti-overturning structure with strong anti-overturning and anti-deformation ability; super-large load upper limit adapts to various heavy-load working conditions; high operational stability supports high-beat continuous production.

Selection Notes: To ensure heavy-load rigidity and bearing performance, the product has a relatively large body volume and weight, so the installation size needs to be verified in advance for space-limited scenarios.

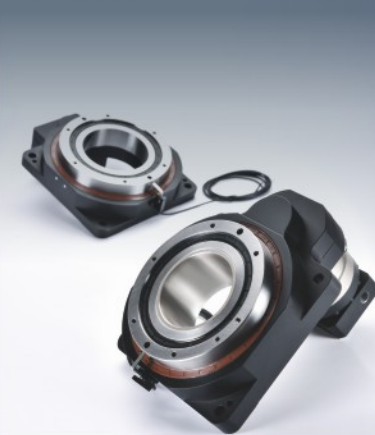

Series 4: ZCH Hypoid Gear Series - Choice for High Precision and High Reduction Ratio

The ZCH hypoid gear series is a high-end precision hollow rotary platform of Zhuochuang. It adopts hypoid gear transmission technology, which is comprehensively upgraded in transmission accuracy, reduction ratio and transmission efficiency compared with traditional spiral bevel gear structures, focusing on ultra-high precision, large reduction ratio and high-efficiency transmission working conditions.

This series has a body reduction ratio of up to 30, realizing a super-large reduction ratio in a compact body structure and effectively simplifying the equipment transmission structure; the gear geometric tolerance is controlled within ≤0.002mm, the transmission repeated positioning accuracy reaches 30 arcseconds with top-level industry accuracy; the transmission efficiency is as high as 98%, with extremely low power loss, lower energy consumption and less operation heat generation.

Applicable Scenarios: Laser marking, laser precision cutting, high-end precision indexing equipment, high-precision positioning equipment for tiny workpieces and other scenarios with strict requirements on accuracy and speed ratio.

Core Advantages: Ultra-high transmission accuracy, super-large reduction ratio, ultra-high transmission efficiency; smooth and low-noise transmission, adapting to high-end precision manufacturing scenarios.

Selection Notes: Supported by high-end precision technology, the production cost of the product is higher than that of conventional series with higher overall procurement cost. It is suitable for scenarios with rigid high-precision requirements, and excessive selection is not required for ordinary working conditions.

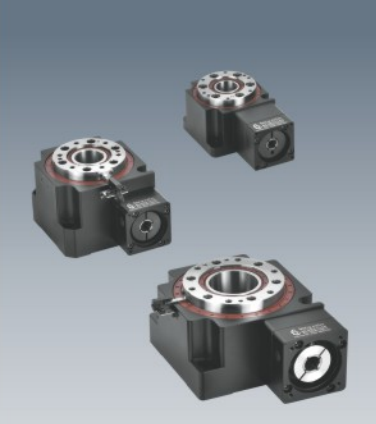

Series 5: ZBTR Integrated Right-Angle Series - Solution for Space-Limited Scenarios

The ZBTR integrated right-angle series is tailor-made for space-limited equipment. It innovatively integrates the right-angle transmission function with the hollow rotary platform. The motor output shaft and the platform transmission structure are arranged vertically at 90°, completely solving the problems of insufficient vertical installation height and bloated equipment body of traditional platforms, and greatly optimizing the equipment space layout.

The product adopts a high-strength steel shell structure with sufficient rigidity and stable operation. It can realize precise rotary positioning in a compact space, taking into account both space utilization and transmission performance, and is the preferred solution for compact automated equipment.

Applicable Scenarios: Small automated equipment, precision detection devices and embedded transmission equipment with limited installation height and compact body.

Core Advantages: Integrated right-angle structure saves installation space to the greatest extent; compact structure without bloating adapts to embedded installation; accurate positioning and stable operation.

Selection Notes: Limited by the right-angle transmission structure, the transmission efficiency is slightly lost compared with the direct-connected platform, and parameter verification is required in advance for working conditions with high torque requirements.

Quick Selection Table for Five Series

Based on the product characteristics of the five series, an efficient selection logic is summarized: Check installation space first (whether limited) → Then check load working conditions (whether heavy or partial load) → Then check wiring requirements (aperture size) → Finally check accuracy requirements (whether hypoid gear is needed). Layer-by-layer screening can accurately match the optimal model to avoid performance surplus or insufficient parameters.
