Typical Applications of Hollow Rotary Platforms in Visual Inspection and Laser Equipment

Analysis of Four Typical Application Scenarios of Hollow Rotary Platforms

Hollow rotary platforms are widely used in high-end equipment fields such as automated production lines, manipulator joints, laser equipment, testing instruments, numerical control indexing devices, packaging equipment, semiconductor equipment and new energy power battery production lines. The following are four most representative application scenarios.

Scenario 1: Machine Visual Inspection – 360° Dead-angle-free Imaging

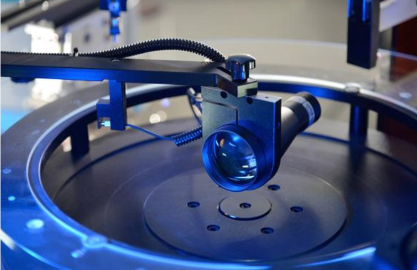

In the machine visual inspection system, the hollow rotary platform drives the tested object to rotate 360° and cooperates with a high-definition camera to complete all-round image collection. The hollow structure allows cables to pass through the center of the platform, avoiding cable winding.

Typical Applications: Lithium battery pole piece inspection, optical lens quality inspection, PCB AOI inspection.

Matched Zhuochuang Products: ZBT large-aperture aluminum alloy hollow rotary platform (lightweight and high precision), ZCTK steel shell series (high rigidity, suitable for heavy-duty testing equipment).

Scenario 2: Laser Processing Equipment – High-precision Rotary Positioning

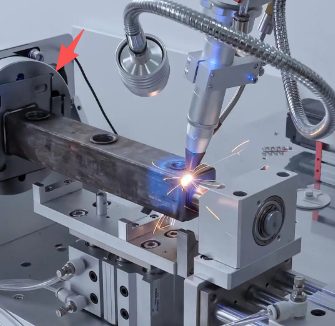

Laser cutting, laser marking and laser welding equipment require high-precision rotary positioning of workpieces. The ±5 arcseconds repeat positioning accuracy of the hollow rotary platform meets the strict optical path alignment requirements of laser processing.

Typical Applications: Laser marking machine rotary workbench, laser cutter fourth axis, laser welding positioner.

Matched Zhuochuang Products: ZCH helical gear series (body speed ratio 30, high precision).

Scenario 3: Numerical Control Indexing Device and Fourth Axis

Hollow rotary platforms are widely used in indexing devices and fourth-axis processing of CNC machine tools. Their high rigidity and high precision directly determine the accuracy and overall performance of processed parts.

Typical Applications: CNC machining center fourth axis, numerical control indexing head, servo positioner.

Matched Zhuochuang Products: ZCM/ZBM right-angle series (adopts spiral bevel gears and cross roller bearings).

Scenario 4: New Energy and Semiconductor Equipment

Hollow rotary platforms are widely applied in photovoltaic module automated production lines, lithium battery equipment and semiconductor manufacturing equipment. The hollow design supports multi-axis linkage and modular design, facilitating equipment upgrading and maintenance.

Typical Applications: Photovoltaic module rotary workbench, lithium battery winding equipment, wafer inspection rotary table.

Matched Zhuochuang Products: ZBT large-aperture series (maximum aperture 200mm, convenient for pipeline and wiring passage).

Why Choose Hollow Rotary Platforms for These Scenarios?

There are three core reasons: first, the hollow structure solves the wiring problem of rotary equipment; second, the accuracy of ±5 arcseconds meets most precision positioning requirements; third, the cost is far lower than DD motors with outstanding cost performance. If your equipment involves rotary positioning, requires pipeline and wiring layout, and has precision requirements with a limited budget, the hollow rotary platform is the most suitable choice.
